Features:

* Glass fiber reinforced plastic body
* Conform to EN 60947-5-1, IEC 60947-5-1, UL508,
* ASME A17.1/5, EN 81-1, EN 81-2 Standards
* High sensibility and low actuating force
* Galvanically separated contacts
* Positive Opening of NC contacts
* Conform to EN 50047 standard

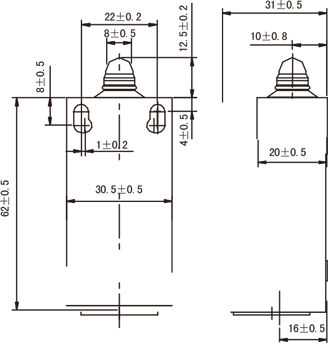

Installation dimensions:

Specifications:

Operating Speed:	0.05mm-0.5m/sec
Rated Current/Voltage:	10A/600V AC (EN60947-5-1) AC15 A600 / DC13 Q300
Inrush Current Complies:	with IEC947-5-1: AC15/DC13
Service Life:	Mechanically 10 millions (operations)
Operating Temperature:	-25~+50oC (-13~122oF) with no icing
Actuating force:	6 N (+/- 2 N)
Actuating Distance:	< 0.5mm
Contact Opening:	2 x 2 mm
Degree of Protection:	IP67

Operating Frequency	0.05mm-0.5m/sec
Rated Current/Voltage	10A/600V AC (EN60947-5-1) AC15 A600 / DC13 Q300
Inrush Current	Complies with IEC947-5-1: AC15/DC13
Service Life	Mechanically 10 millions (operations)
Operating Temperature	-25~+50oC (-13~122oF) with no icing
Actuating force	6 N (+/- 2 N)
Actuating Distance	< 0.5mm
Contact Opening	2 x 2 mm
Degree of Protection	IP67

NO.	Subject	PDF Download
1	Manual Reset for Over-Speed Devices	Download

Manual Reset for Over-Speed Devices
