| Operating Speed: |
0.05mm-2m/sec |
/sm32p11-04s_sm32s11-04s-1.jpg) |
| Operating Frequency: |
Mechanical:120ops/min
Electrical:30ops/min |
| Insulation Resistance: |
>100mΩ@500V DC |
| Contact Resistance: |
<25mΩ |
| Rated Current/Voltage: |
5A/300V AC (EN60947-5-1) |
| Electrical Rating: |
AC15 A600/ DC13 Q300 |
| Dielectric Strength: |
1000VAC for 1 min between non-continuous terminals
2500VAC for 1 min between each terminal and ground |
| Service Life: |
Mechanically 10,000,000
Electrically 500,000 |
| Operating Temperature: |
-25~80℃(-13~176°F) without formation of ice |
| Humidity: |
<95%RH |
| Cable: |
5 core: 0.75mm²
7 core: 0.5mm²
9 core: 0.34mm² |
| Degree of protection: |
IP67 |

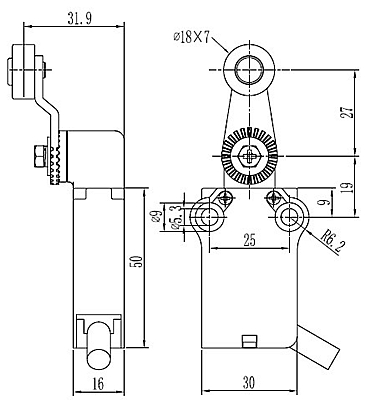

SM32P11-04s/SM32S11-04s
