Features:

* Robust metal enclosure design
* Compact space-saving and tightly gang mounting possible
* High sealability oil-resistant/Immersion-proof type
* Long mechanical life of 10 million operations
* High sensitivity (M.D. =0.1mm)
* Gold plated contact available for low current applications
* M12 connector type available

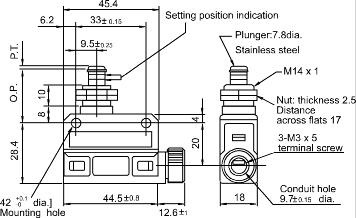

Installation dimensions:

Specifications:

Operating Speed:	0.05mm-2m/sec
Operating Frequency:	120ops/min
Insulation Resistance:	>100MΩ @ 500V DC
Contact Resistance:	<25mΩ
Electrical Rating:	Standard Load Type (Silver contacts)5A/250VAC or 5A/30VDC Low Current type (Gold Plated Contacts) 0.1A/250VAC or 0.1A/30VDC
Dielectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life:	Mechanically 10000000 (operations) Electrically 500000 (operations)
Operating Temperature:	-30~+80°C (-22~+176°F)
Humidity:	<95%RH
Degree of protection:	IP67

for example：SN11	10
Enclouse type	head type
SN11

NO.	Subject	PDF Download
1	SN1 Precision Limit Switches	Download
