SN5 Compact Limit Switches

Overview
Selection Guide
Products List
Download

Features:

* Designed for applications of small mounting space
* Highly rigid construction (head and cover snugly fit in box)
* Wide range of actuators available
* Pre-molded flexible cable gland for fast and simple wiring termination
* UL CSA CE CCC Approved

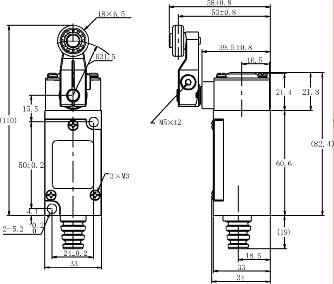

Installation dimensions:

Specifications:

Operating Speed:	0.05mm-2m/sec
Operating Frequency:	Mechanical:120ops/min Electrical:30ops/min
Insulation Resistance:	>100MΩ @ 500V DC
Contact Resistance:	<25mΩ
Rated Voltage:	250V AC(EN60947-5-1)
Rated Current:	10A
Dielectric Strength:	1000VAC for 1 min between non-continuous terminals 2500VAC for 1 min between each terminal and ground
Service Life:	Mechanically 10,000,000 Electrically 500,000
Operating Temperature:	-20 to +80°C (-14 to 176°F)
Humidity:	<95%RH
Weight:	240~290g
Degree of protection:	IP67

for example：SN51	04
Enclouse type	head style
SN51

NO.	Subject	PDF Download
1	SN5 Compact Limit Switches	Download
