Water Proof Micro Switch S-72

Overview
Selection Guide
Products List
Download

Features:

* Moistureproof
* 3 contact arrangements
* Long-life coil spring mechanism
* Plunger type and pressing plate type available
* 16 AWG cable applied
* Customized cable type available

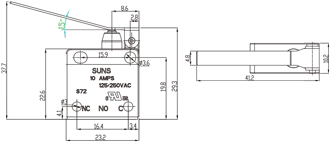

Installation dimensions:

Specifications:

Electrical
Electrical Rating:	10A,125/250VAC
Temperature Rating:	-40℃-85℃
Flammability Rating:	UL94V-0
Service Life:	Mechanical 10,000,000 (operations) Electical 5000,000 (operations)
Materials
Case Thermoplastic
Actuating Button Thermoplastic
Common erminals Silver-plated Brass
Moving Blade Silver-plated Brass
Spring Stainless steel
Auxiliary Actuators Cold-Roll steel sheet (Nickel plated)
Contacts Silver-cadmium oxide
Degree of Protection:	IP67

Electrical

Electrical Rating:	10A,125/250VAC
Temperature Rating:	-40℃-85℃
Flammability Rating:	UL94V-0
Service Life:	Mechanical 10,000,000 (operations) Electical 5000,000 (operations)

Materials

Case:	Thermoplastic
Actuating Button:	Thermoplastic
Common erminals:	Silver-plated Brass
Moving Blade:	Silver-plated Brass
Spring:	Stainless steel
Auxiliary Actuators:	Cold-Roll steel sheet (Nickel plated)
Contacts:	Silver-cadmium oxide

NO.	Subject	PDF Download
1	Water Proof Micro Switch S-72	Download
