ZS-15G Series Micro Switches

Overview
Selection Guide
Products List
Download

Features:

* Specifications Operating Speed 0.01mm-1m/sec Operating Frequency

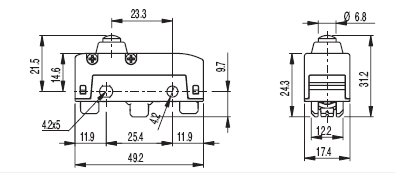

Installation dimensions:

Specifications:

Operating Speed:	0.01mm-1m/sec
Operating Frequency:	Mechanical:240ops/min Electrical:20ops/min
Insulation Resistance:	>100mΩ@500V DC
Contact Resistance:	<15mΩ
Rated Current/Voltage:	15A 125/250/480VAC;3/4HP/125VAC 1.5HP/250VAC (UL file E321073)
Dielectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non- current carrying parts
Service Life:	Mechanically 1 x107 (operations) Electrically 5 x105 (operations)
Operating Temperature:	-25~+80oC (-13~176oF)
Humidity:	<95％RH
Degree of Protection:	IP67

Operating Speed:	0.01mm-1m/sec
Operating Frequency:	Mechanical:240ops/min Electrical:20ops/min
Insulation Resistance:	>100mW@500V DC
Contact Resistance:	<15mW
Rated Current/Voltage:	15A 125/250/480VAC;3/4HP/125VAC 1.5HP/250VAC (UL file E321073)
Dielectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non- current carrying parts
Service Life:	Mechanically 1.0 x107 (operations) Electrically 5 x105 (operations)
Operating Temperature:	-25~+80oC (-13~176oF)
Humidity:	<95％RH
Degree of Protection:	IP67

NO.	Subject	PDF Download
1	ZS-15G Series Micro Switches	Download
