FS-72 Series Foot Switch

Overview
Selection Guide
Products List
Download

Features:

* Robust Glass Fiber Reinforced Plastics housing
* Pedal available in IP20 and IPX8
* Each footboard may control triggers
* Uses in the medical service and industrial field

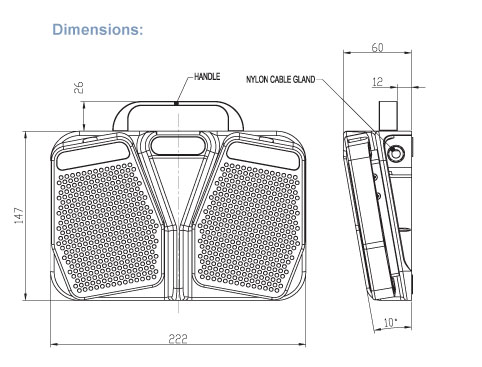

Installation dimensions:

Specifications:

Operating Speed:	60ops/min
Insulation Resistance:	>100mΩ@500VDC
Contact Resistance:	<25mΩ
Rated Current/Voltage:	10A/300V AC
Inrush Current:	Complies with IEC60947-5-1:AC15/DC 13
Dielectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life:	Mechanically 1.0×107 (operations) Electrically 5×105 (operations)
Operating Temperature:	-30~+80(-22~+176)
Degree of Protection:	IP20 and IPX8

for example：FS72	-10	-W	-BH
	Electrical Rating	IP Rating	options
	10:10A/250VAC	Blank:IP20	B: with pushbutton
	15:15A/250VAC	W:IPx8	H: With handler
			K:Gold plated contact

FS-72

NO.	Subject	PDF Download
1	FS-72 Series Foot Switch	Download
