FS-8 USB Foot Switch Series

Overview
Selection Guide
Products List
Download

Features:

* Available in Single,Twin&3-Pedals (If more than 3pedal needs,two foot swithes can be used)
* Pre-program key functions on the foot pedal by software
* Only requires a USB interface
* Compatible with Windows OS2000/XP/Vista/7
* Available with medical grade waterproof pedals
* Comes with CD-Rom for setting pedal(s) functions

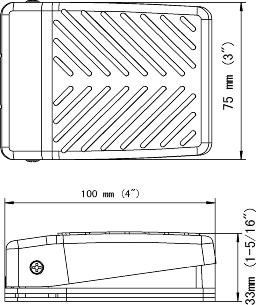

Installation dimensions:

Specifications:

Operating Speed:	60ops/min
Insulation Resistance:	>100mΩ@500VDC
Contact Resistance:	<25mΩ(initial)
Rated Current/Voltage:	15A, 1/2HP, 125/250VAC or 20A 1HP 125VAC, 2HP 250VAC
Dielectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life:	Mechanically 1 x106 (operations)
Operating Temperature:	-30~+80(-22~+176)
Degree of Protection:	IP20/NEMA 1 or IPX8/NEMA 4,4X,6,6P

For example：FS81	-SP	-M	-T	-P	Twin	8-18/3
	Switch Type	Enclosure Type	Contact Type	option	option	Wring Information
	SP:Snap action	blank:Fiber renforced Plastic	Blank	K:Gold plated contact	blank:single pedal	Wiring information(standard with 2m cable)
	SL:Slow action	M:Die cast zinc			n-pedal(n=2...6)
	10:Snap action(IP20)				Twin:2-pedal

FS-81-10-USB

FS-81-10(twin)

FS-81-10(3-pedal)

NO.	Subject	PDF Download
1	FS-8 USB Foot Switch Series	Download
