FS-82 Series Medical Foot Switch

Overview
Selection Guide
Products List
Download

Features:

* Robust Glass Fiber Reinforced Plastics housing
* Pedal available in plastic and aluminum die cast metal
* Choice of different type of contact blocks
* Galvanically separated contacts (for FS81-SP only)
* Positive Opening of NC contacts (for FS81-SP only)
* UL/cUL approved (E216958)
* IEC60601 certification issued by TUV for medical applications

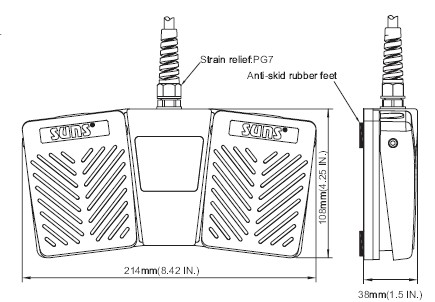

Installation dimensions:

Specifications:

Operating Speed:	60ops/min
Insulation Resistance:	>100mΩ@500VDC
Contact Resistance:	<25mΩ
Rated Current/Voltage:	10A/300V AC
Inrush Current:	Complies with IEC947-5-1:AC15/DC 13
Dielectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life:	Mechanically 1.0×106 (operations) Electrically 5×105 (operations)
Operating Temperature:	-30~+80(-22~+176)
Degree of Protection:	IP20 and IPX8(for FS82-SP)

For example：FS82	-	-SP	-T	-M	-P
		Switch Type	Contact Type	Enclosure Type	options
		10:10A snap action (IP20)	Blank:SPDT	blank:Fiber reinforced plastic	P:Supplied with 3 prong series plug
		15:15A snap action (IP20)	T:DPDT(2NO/2NC)	M:Die cast Alumnum	K:gold plated contact
		SP:10A snap action(IPx8)	S:DPDT(2-stage)		G:With protection guard
		SL:10A slow action (IPx8)

FS-82-SP-M-B100M

Double Pedal Foot Switches FS-82

NO.	Subject	PDF Download
1	FS-82 Series medical Foot Switch	Download
