FWC/1FWM-1 Welding Foot Switches

Overview
Selection Guide
Products List
Download

Features:

* Robust fiber reinforced plastic or die-cast aluminum alloy design
* Ergonomic design
* IP68 water-proof
* Choice of 1K, 5K and 10K potentiometer
* Available in wired and wireless

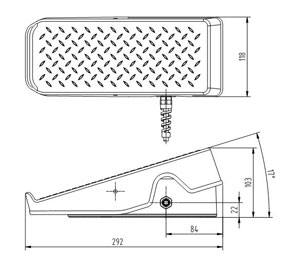

Installation dimensions:

Specifications:

Operating Frequency:	60 ops/min
Insulation Resistance:	>100mΩ@500V DC
Contact Resistance:	<30mW (initial)
Rated Current/Voltage:	15A 120-250VAC
Inrush Current:	Complies with IEC947-5-1: AC15/DC13
Dielectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life:	Mechanically 1 x106 (operations) Electrically 5 x105 (operations) Potentiometer 2.5x105 (operations)
Operating Temperature:	-30~+80℃(-22~176℉)
Degree of Protection:	IP68/NEMA 6,6P

FWC/1FWM-1
