FSR-2 Series Medical Foot Switches (IPX8, Rocker S

Features:

* Rocker arm foot switch
* Zinc metal die cast body
* High mechanical stability

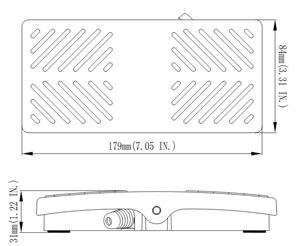

Installation dimensions:

Specifications:

Operating Frequency:	60 ops/min
Insulation Resistance:	>100MΩ @500V DC
Contact Resistance:	<25mΩ(initial)
Rated Current/Voltage:	10A/15A 1/2HP 250VAC
Inrush Current:	Complies with IEC947-5-1: AC15/DC13
Dielectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life:	Mechanically 1 x106 (operations) Electrically 5 x105 (operations)
Operating Temperature:	-30~+80oC (-22~176oF)
Degree of Protection:	IPX8(NEMA 4, 4X, 6, 6P)
