FS-83-W Series Medical Foot Switches(IPx8)

Overview
Selection Guide
Products List

Features:

* Aluminum alloy die cast base
* Galvanically separated contacts (for -SP, -SL)
* Positive opening of NC contacts (for -SP, -SL)
* UL/CSA/CE/CCC certified
* IEC60601 certification issued by TUV for medical applications
* Custom color/wiring available

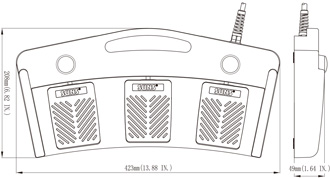

Installation dimensions:

Specifications:

Operating Frequency:	60 ops/min
Insulation Resistance:	>100mΩ@500V DC
Contact Resistance:	<25mΩ(initial)
Rated Current/Voltage:	Ith: 10A Ui: 300V AC or 10A/15A 250VAC
Inrush Current:	Complies with IEC947-5-1: AC15/DC13
Dielectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life:	Mechanically 1 x106 (operations) Electrically 5 x105 (operations)
Operating Temperature:	-30~+80oC (-22~176oF)
Degree of Protection:	IPX8(NEMA 4, 4X, 6, 6P)

Operating Frequency:	60 ops/min
Insulation Resistance:	>100mW@500V DC
Contact Resistance:	<25mW (initial)
Rated Current/Voltage:	Ith: 10A Ui: 300V AC or 10A/15A 250VAC
Inrush Current:	Complies with IEC947-5-1: AC15/DC13
Dielectric Strength:	1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life:	Mechanically 1 x106 (operations) Electrically 5 x105 (operations)
Operating Temperature:	-30~+80oC (-22~176oF)
Degree of Protection:	IPX8(NEMA 4, 4X, 6, 6P)

FS-83-W
